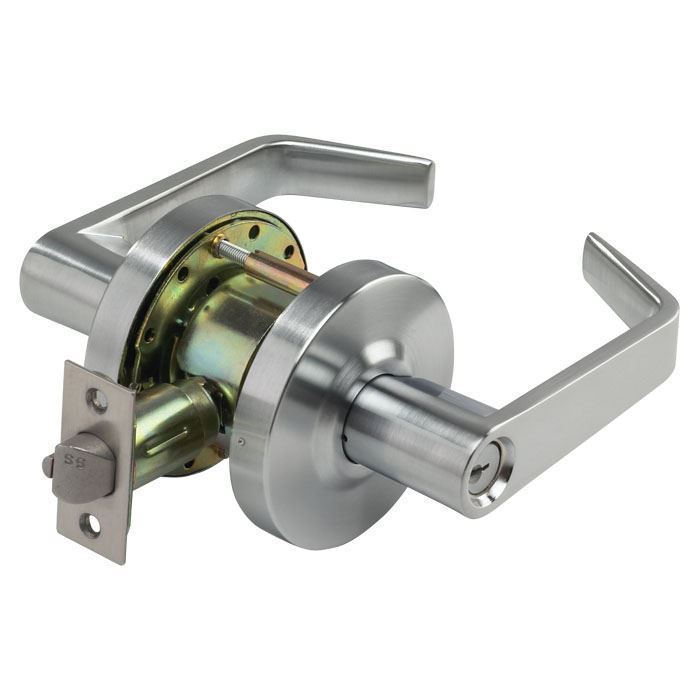

Sabre 500 Series - Entrance Set

The 500 Series Cylindrical Lever Locksets are built to last. Industrial strength, the 500 Series Locksets are ideal for those high traffic areas.

SKU:
SAB-LL500-70-SC
10 Year Mechanical Warranty Heavy Duty Fire Rated
Full description

Sabre 500 Series - Entrance Set

  • 6 Pin C4 Brass PD Cylinder

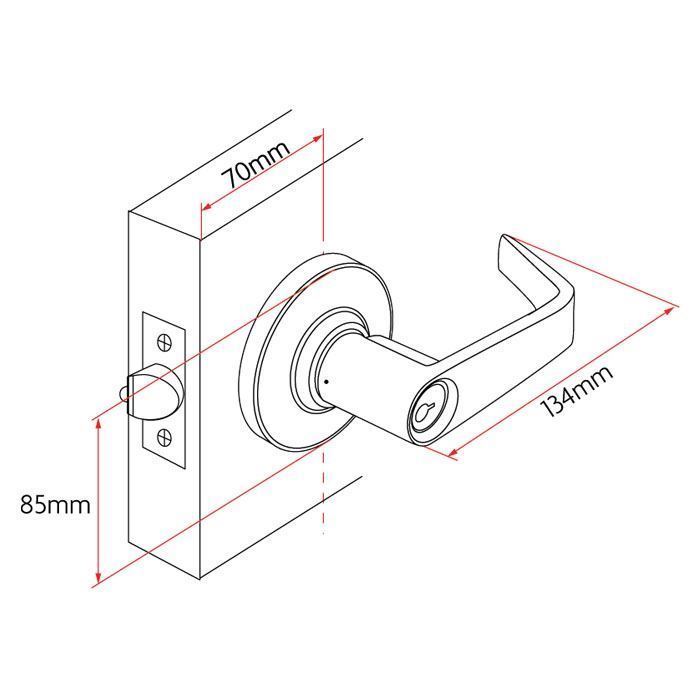

  • Rose Diameter 85mm
  • Heavy Duty Cylindrical Chassis
  • Stainless Steel Latch
  • Standard 70mm Backset
  • Suits Door Thicknesses between 35-45mm
  • Non Handed
  • 2 Keys Included
  • Suitable for Master Keying and Restricted Systems
  • 60mm Backset Latches Sold Separately
  • Suits 54mm Cross Bore

OUTSIDE

Operated by handle when unlocked. Key unlocks handle and retracts latch.

INSIDE

Push button locks outside handle. Inside handle always unlocks outside handle. Opened by handle at all times.

FINISH

  • SC - Satin Chrome

Sabre 500 Series - Entrance Set

  • 6 Pin C4 Brass PD Cylinder
  • Rose Diameter 85mm
  • Heavy Duty Cylindrical Chassis
  • Stainless Steel Latch
  • Standard 70mm Backset
  • Suits Door Thicknesses between 35-45mm
  • Non Handed
  • 2 Keys Included
  • Suitable for Master Keying and Restricted Systems
  • 60mm Backset Latches Sold Separately
  • Suits 54mm Cross Bore

OUTSIDE

Operated by handle when unlocked. Key unlocks handle and retracts latch.

INSIDE

Push button locks outside handle. Inside handle always unlocks outside handle. Opened by handle at all times.

FINISH

  • SC - Satin Chrome

**Sabre makes every effort to have all technical information kept up to date and accurate however we urge users to decide on the suitability of the selected product for that particular application.
For full details on the Product Warranty refer to the following document: Sabre-Warranty.**
