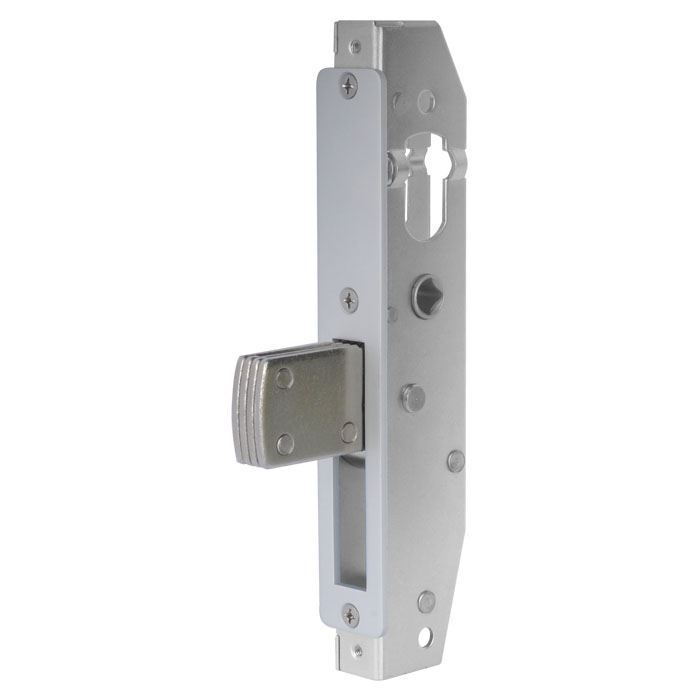

SABRE 590L Deadlock Body Only

SUITABLE FOR ALUMINIUM AND METAL DOORS. SABRE’s range of Short Backset Swing Deadlocks are suited for both hinged and sliding door applications. These deadlocks are generally used in commercial and architectural glazed stiles were a standard timber lock cannot be installed. The range consists of the 590 Series which is used for hinged doors and the 591 Series which is used for sliding doors. The 590 Series has 2 sized bolt projections 22mm and 36mm whilst the 591 Series has a 28mm hooked projection to cater for the latching strike. All bolts are made of case hardened laminated steel.
SKU:
SAB-DL590L-SC
10 Year Mechanical Warranty
Full description

SABRE 590L Deadlock Body Only

  • Standard 23mm Backset
  • 'R' Cam Compatible
  • Case Hardened Laminated Bolt
  • Doors up to 58mm in Thickness
  • Oval Cylinder Escutcheons Included
  • Suitable for Master Keying and Restricted Keying
  • Bolt Projection 36mm

 FINISH

  • SC - Satin Chrome

SABRE 590L Deadlock Body Only

  • Standard 23mm Backset
  • 'R' Cam Compatible
  • Case Hardened Laminated Bolt
  • Doors up to 58mm in Thickness
  • Oval Cylinder Escutcheons Included
  • Suitable for Master Keying and Restricted Keying
  • Bolt Projection 36mm

 FINISH

  • SC - Satin Chrome
