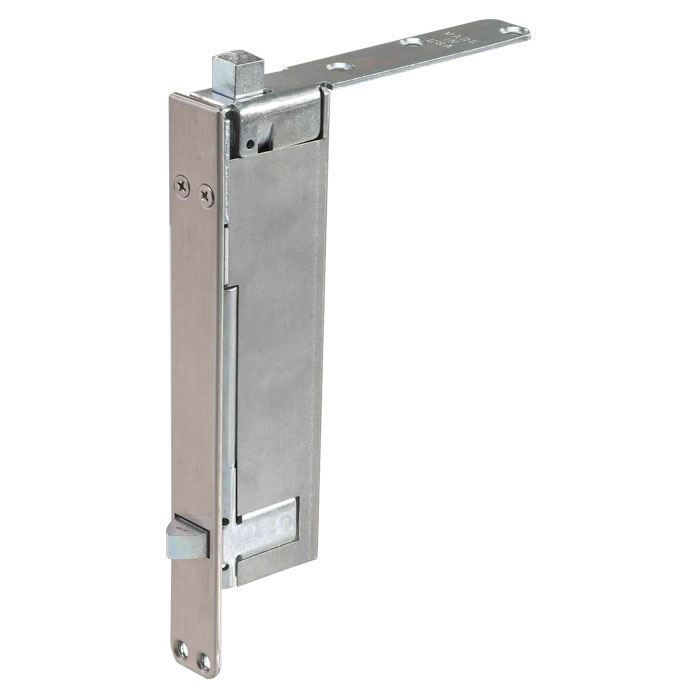

Sabre 940 Auto Flush Bolt - Timber Doors

Automatic Flush Bolts can be installed in the top and bottom of the inactive door. Closing the active door automatically extends the bolts locking the inactive door. Opening the active door retracts the bolts releasing the inactive door. Overload Feature: The over load feature prevents damage to doors or bolts should the bolt head be unable to extend into the top and bottom strikes. Low Closing Force: Patented free floating cams requires less than 2.5kg closing force of the active door to extend both top and bottom bolts. Adjustable Bolt Heads: Bolts can be vertically adjusted for unusual clearances. An adjustment of 31.2mm is available for the 840 Series and 12.5mm for the 940 Series.

SKU:
SAB-FB940-SSS
Made in USA 10 Year Mechanical Warranty Fire Rated
Full description

Sabre 940 Auto Flush Bolt - Timber Doors

  • Suitable for Double Doors
  • Self Latching Adjustable Bolts
  • Top and Bottom Installation
  • Minimum Door Thickness 35mm
  • 19mm Bolt Throw
  • Overload Feature and Low Closing Force
  • Non Handed
  • Suitable for Timber door pairs

 FINISH

  • SSS - Satin Stainless Steel

Sabre 940 Auto Flush Bolt - Timber Doors

  • Suitable for Double Doors
  • Self Latching Adjustable Bolts
  • Top and Bottom Installation
  • Minimum Door Thickness 35mm
  • 19mm Bolt Throw
  • Overload Feature and Low Closing Force
  • Non Handed
  • Suitable for Timber door pairs

 FINISH

  • SSS - Satin Stainless Steel

**Sabre makes every effort to have all technical information kept up to date and accurate however we urge users to decide on the suitability of the selected product for that particular application.
For full details on the Product Warranty refer to the following document: Sabre-Warranty.**
