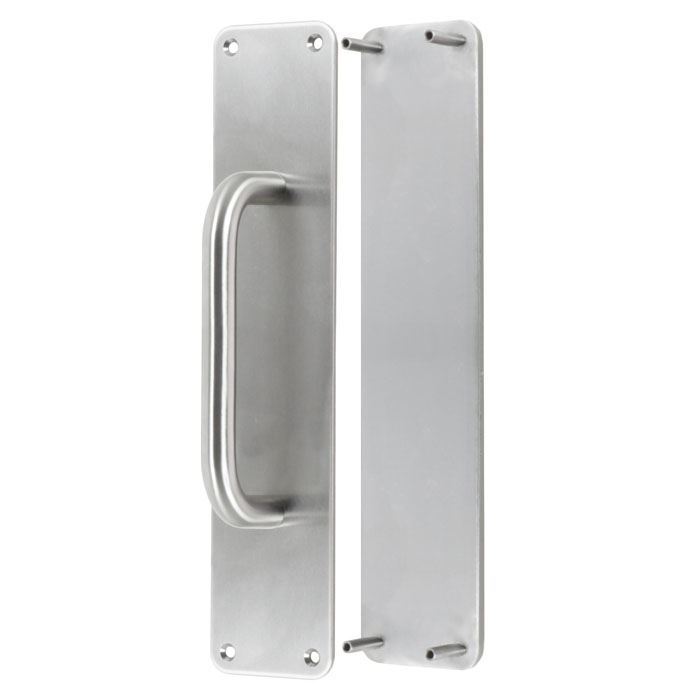

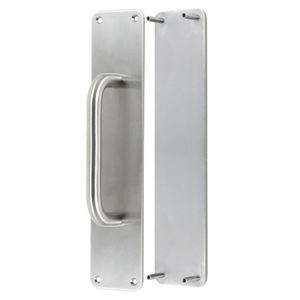

Sabre Concealed Push/Pull Plate Set - 65mm

SUITABLE FOR TIMBER AND ALUMINIUM DOORS. The Sabre range of push and pull plate sets are made from 2mm thick 304 stainless steel, stocked in two common sizes, 300mm x 100mm and 300mm x 65mm. All plates come with 10mm radius corners and are available in both concealed and visible fix combinations. All pull handles comply with AS1428 with no less than 35mm and no greater than 45mm finger clearance between the underside of the pull and its fixing surface. All push/pull plates and pull handles are supplied with appropriate fixing screws.
SKU:
SAB-PPSET-CON65-SSS
Stainless Steel AS1428.1 Compliant 10 Year Finish Warranty
Full description

Sabre Concealed Push/Pull Plate Set - 65mm

  • Solid Stainless Steel Pull Handles
  • AS1428-1 Compliant
  • 2mm Plate Thickness
  • Secure Stud Welded Fixing Posts

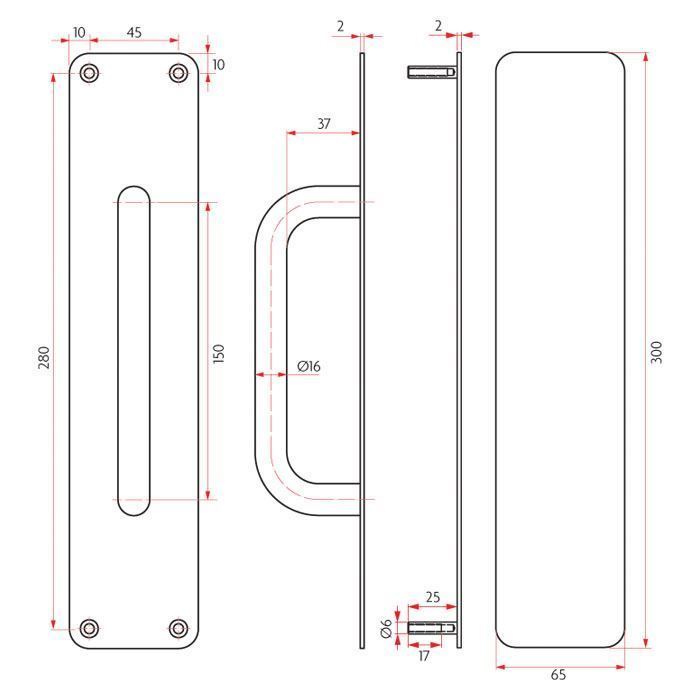

  • Plate size 300 x 65 x 2mm
  • Concealed push with visible 150mm pull
  • To suit standard doors between 35mm and 45mm thick (longer screws are required for thicker doors)
  • 4 x M4 x 30mm screws

FINISH

  • SSS - Satin Stainless Steel

Sabre Concealed Push/Pull Plate Set - 65mm

  • Solid Stainless Steel Pull Handles
  • AS1428-1 Compliant
  • 2mm Plate Thickness
  • Secure Stud Welded Fixing Posts
  • Plate size 300 x 65 x 2mm
  • Concealed push with visible 150mm pull
  • To suit standard doors between 35mm and 45mm thick (longer screws are required for thicker doors)
  • 4 x M4 x 30mm screws

FINISH

  • SSS - Satin Stainless Steel
