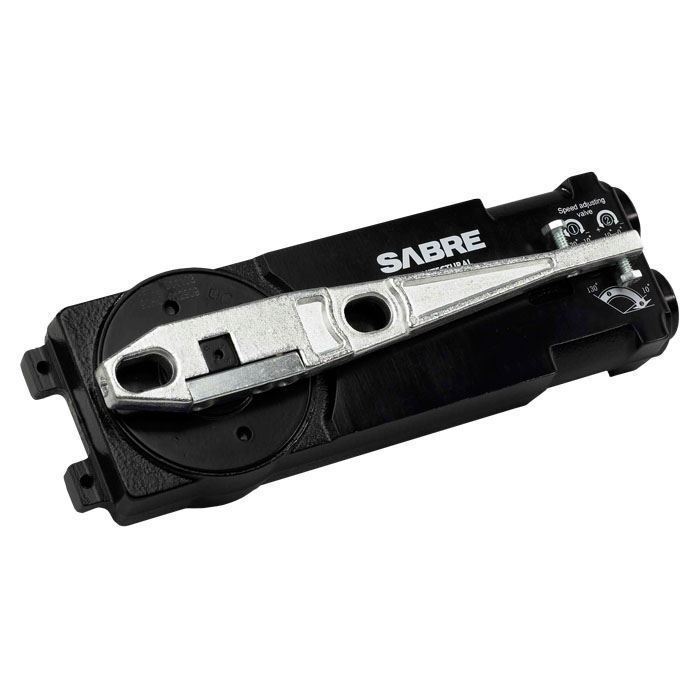

Sabre 850 Transom Closer - Hold Open 105°
SUITABLE FOR ALUMINIUM DOORS.
The Sabre 850 Series Transom Closers are used when
concealment of the closer is required or when the
door is required to operate in both inward and outward
directions under control. Transom Closers are ideally
suited for pivoting internal or external doors that are
found on school, office and commercial buildings. All
Sabre 850 Series Transom Closers are manufactured
from premium quality cast iron and heat treated internal
components that will provide many years of continuous
operation.
SKU: SAB-TC
Transom Closer Size
---
Size 3
Size 4
Full description
Sabre 850 Transom Closer - Hold Open 105°
Available in Fixed Strength Sizes 3 or 4 Hold Open 105° Suitable for Single and Double Action Doors Suits for Door Widths up to 1100mm Door Weight up to 100kg Minimum Door Thickness 38mm Adjustable Latching and Closing Speeds Universal Adjustable Bottom Pivot
Note:
Although suitable for aluminium doors, the 850 Transom Closer can be installed on timber frames. However, no cover is available.
DETAILS
Size 3
Door Weight up to 100kg Up to 950mm wide door Closing torque 19Nm
Size4
Door weight up to 100kg Up to 1100mm wide door Closing torque 25Nm
