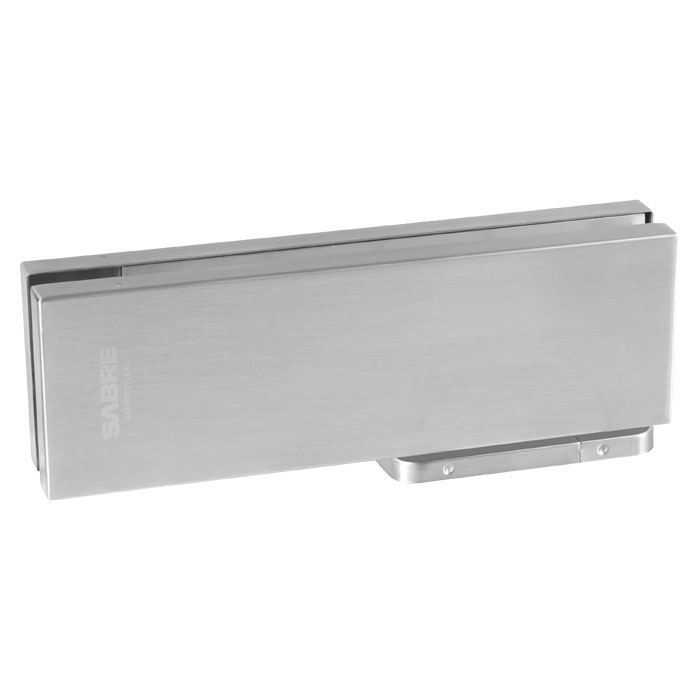

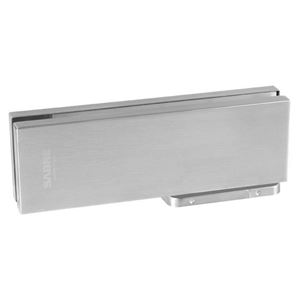

Sabre 8835 Glass Patch Closer - Non Hold Open

SUITABLE FOR GLASS PIVOT DOORS. The Sabre 8835 Patch Door Closer includes world-wide patented technology. This unique glass door closer has been designed to keep installation easy and compact. The hydraulic mechanism is highly efficient whilst remaining visually appealing. Alignment of the door is simple, including valve controls for strength, closing and latching speeds. The 8835 Glass Patch Door Closer is simple to maintain and keep clean which is ideal in areas where hygiene is important. Ideally suited for office fit-outs, swimming pool gates or simply where glass door applications are specified. Note: Top Pivot not supplied with product.

SKU:
SAB-PC8835-NHO-SSS
3-5 Adjustable Spring Strength 5 Year Mechanical Warranty Stainless Steel
Full description

Sabre 8835 Glass Patch Closer - Non Hold Open

  • Suitable for Single or Double Action Doors
  • Adjustable Spring Strength Size 3 to 5
  • Adjustable Latching and Closing Speeds
  • Maximum 150° Open Angle
  • Suitable for Door Widths up to 1250mm
  • Maximum Door Weight 100kg
  • Suits 10-15mm Glass Door Thickness
  • Reduced Floor Preparation
  • Adjusted Door Alignment
  • Suitable for Glass Pivot doors
  • Non Handed

FINISH

  •  SSS - Satin Stainless Steel

Sabre 8835 Glass Patch Closer - Non Hold Open

  • Suitable for Single or Double Action Doors
  • Adjustable Spring Strength Size 3 to 5
  • Adjustable Latching and Closing Speeds
  • Maximum 150° Open Angle
  • Suitable for Door Widths up to 1250mm
  • Maximum Door Weight 100kg
  • Suits 10-15mm Glass Door Thickness
  • Reduced Floor Preparation
  • Adjusted Door Alignment
  • Suitable for Glass Pivot doors
  • Non Handed

FINISH

  •  SSS - Satin Stainless Steel

**Sabre makes every effort to have all technical information kept up to date and accurate however we urge users to decide on the suitability of the selected product for that particular application.
For full details on the Product Warranty refer to the following document: Sabre-Warranty.**
