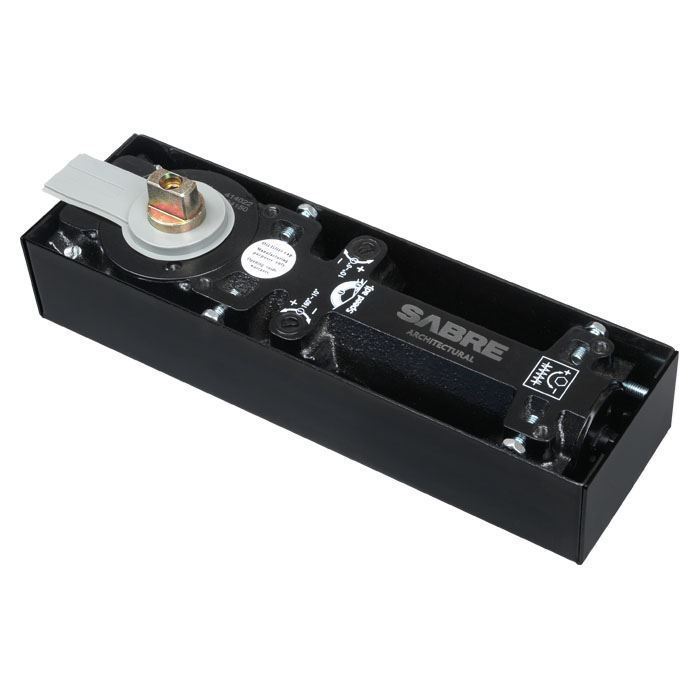

Sabre 950 Floor Spring - Non Hold Open

SUITABLE FOR TIMBER, METAL AND GLASS DOORS. The Sabre 950 Adjustable Strength Floor Spring is designed to handle heavy doors with a maximum weight capacity of 300kgs. The 950 can be used for controlling single and double action doors up to 1450mm wide. The 950 comes complete with a stainless steel cover plate to conceal the floor spring body and has optional spindle heights that can be used for varying door clearances that may be required. It has a robust design and has easy adjustment features. The 950 includes a highly effective cam action mechanism, making it easier for the user to open the door, whilst maintaining strength to also close the door. Note: Top Pivots are not supplied as standard with the 950. Ask your architectural hardware representative for the best pivoting option to suit your door application. Sabre recommends the use of sealing compounds when installed in external and wet area applications.

SKU:
SAB-FS950-NHO-SSS
4-6 Adjustable Spring Strength Stainless Steel 10 Year Mechanical Warranty
Full description

Sabre 950 Floor Spring - Non Hold Open

  • Suitable for Single or Double Action Doors
  • Adjustable Spring Strength Size 4 to 6
  • Adjustable Latching and Closing Speeds
  • Maximum 160° Open Angle

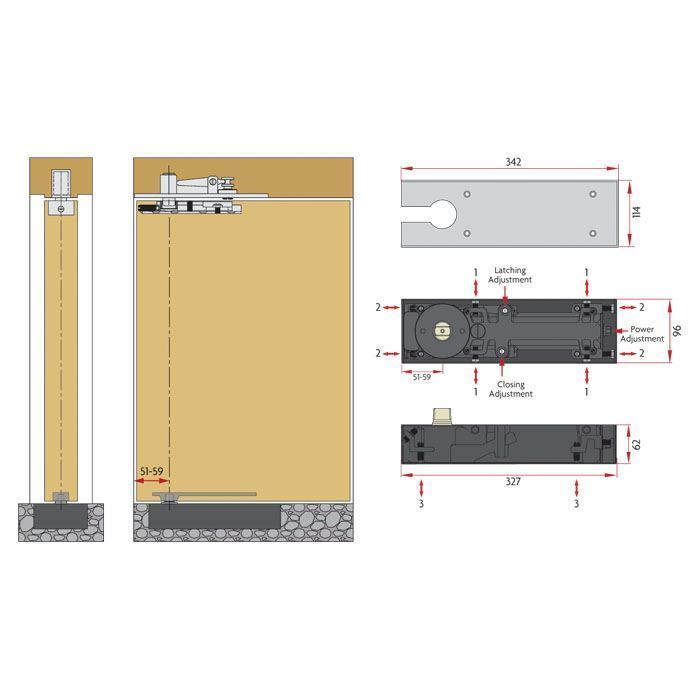

  • Suitable for Door Widths up to 1450mm
  • Maximum Door Weight 300kg
  • Interchangeable Standard Spindle Included (5mm Door Clearance)
  • Suitable for Timber, Metal and Glass doors
  • Top centre is not included

FINISH

  •  SSS - Satin Stainless Steel

Sabre 950 Floor Spring - Non Hold Open

  • Suitable for Single or Double Action Doors
  • Adjustable Spring Strength Size 4 to 6
  • Adjustable Latching and Closing Speeds
  • Maximum 160° Open Angle
  • Suitable for Door Widths up to 1450mm
  • Maximum Door Weight 300kg
  • Interchangeable Standard Spindle Included (5mm Door Clearance)
  • Suitable for Timber, Metal and Glass doors
  • Top centre is not included

FINISH

  •  SSS - Satin Stainless Steel

**Sabre makes every effort to have all technical information kept up to date and accurate however we urge users to decide on the suitability of the selected product for that particular application.
For full details on the Product Warranty refer to the following document: Sabre-Warranty.**
